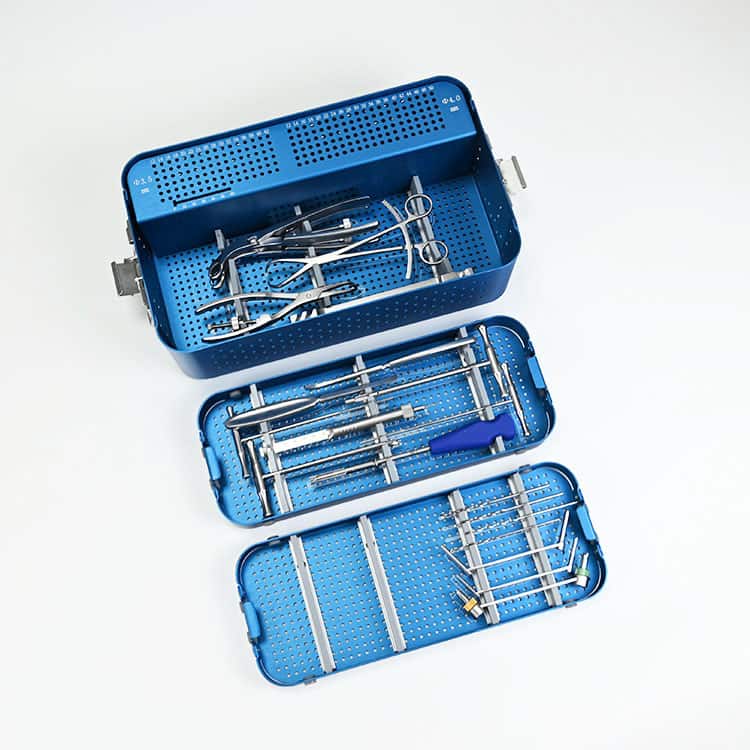

Small Fragment Instrument Set
Adapted to the specific needs of small bone fragment operations by providing a set of instruments tailored to the special requirements of these procedures.
Specifically designed for the fine operation of stabilizing minute bone fragments in fractures, osteotomies, and non-unions of the clavicle, scapula, olecranon, humerus, radius, ulna, pelvis, distal tibia, fibula, and general compartments where small bone fragments exist.
NO. | Product | Specification | Qty. |
1 | Neutral and Load Drill Guide | Φ2.5 | 1 |
2 | Drill & Tap Guider | Φ2.5/Φ3.5 | 1 |
3 | Φ3.5/Φ4.0 | 1 | |
4 | Drill Bit | Φ2.5*115mm | 2 |
5 | Φ3.2*115mm | 2 | |
6 | Periosteal Elevator | 6mm | 1 |
7 | 12mm | 1 | |
8 | Tap Cancellous | 4.0mm | 1 |
9 | Hollow Reamer | Φ6.0 | 1 |
10 | Extraction Screw Hexagonal | 2.5mm Conical | 1 |
11 | Countersink | 1 | |
12 | Depth Gauge | 0-60mm | 1 |
13 | Tap Cortex | 3.5mm | 1 |
14 | Screwdriver Hexagonal | 2.5mm Conical | 1 |
15 | Self-centering Bone Holding Forcep | 190mm | 2 |
16 | Sharp Reduction Forcep | 190mm | 1 |
17 | Obilique Reduction Forcep | 170mm | 1 |
18 | Bending Iron | 1 | |
19 | Aluminum Box | 1 |
Key Features:
Small fragment set is small but has all required instruments from torque-limiting screwdrivers to bone holding forceps allowing each step of the procedure to be performed with precision.
The construction is durable. Made from premium quality stainless steel, ensures longevity amid the repeated and sterilization process that it undergoes.
Each tool has an ergonomic handle that makes it easy to use without fatigue and therefore performing a surgery efficiently.
Generally, it’s applicable in hand surgery, foot and ankle surgeries, and operations on the wrist due to the stability and fixation of small bone fragments.
The small fragment set makes sure that a patient gets comfort and has favorable surgical outcomes. This will promote a less tedious recovery process and early resumption of daily activities for the patient.
