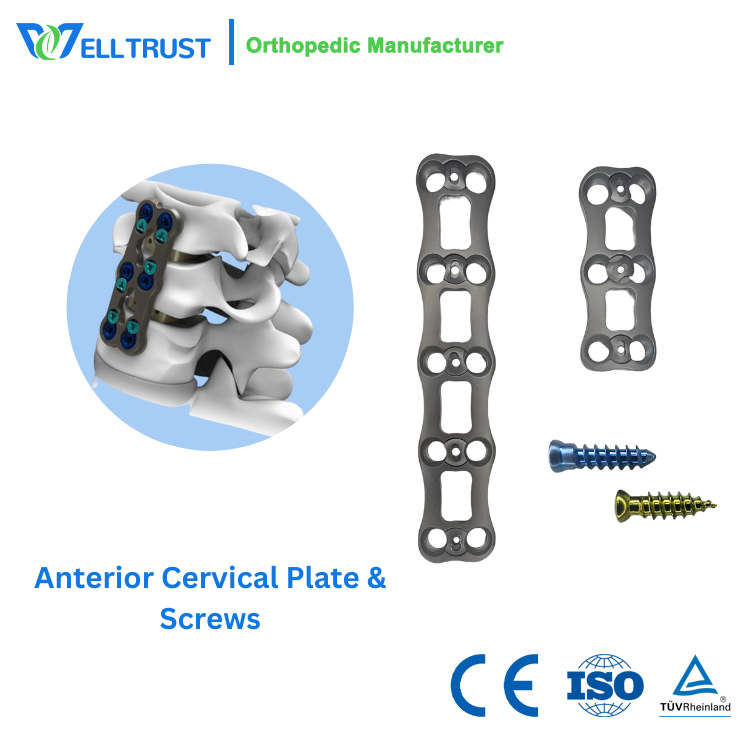

Anterior Cervical Plate & Screw
The ACDF plate (Anterior Cervical Discectomy and Fusion), also known as a anterior cervical plate, is a specialized medical device designed for stabilizing and fusing the cervical spine.
This type of spine plate is highly effective in addressing conditions such as degenerative disc disease, herniated discs, and fractures. By providing structural support and promoting fusion between vertebrae, the ACDF plates are widely utilized in surgical interventions aimed at restoring spinal alignment and providing structural support for the cervical region.
There are two different designs of anterior cervical plates to choose from, as well as a variety of sizes to meet different surgical needs.
Specification | ||

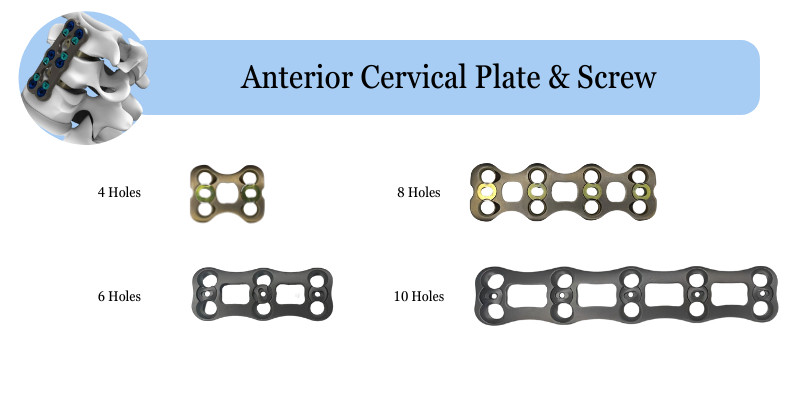

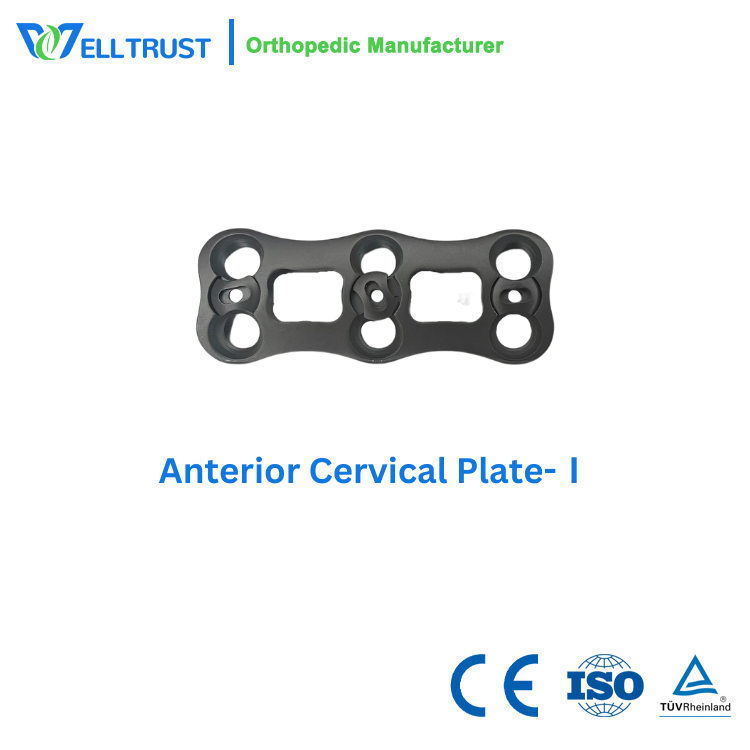

Anterior Cervical Plate-Ⅰ | 4 Holes | 25/27/30/32mm |
6 Holes | 35/38/41/44/47mm | |
8 Holes | 50/53/57/60/63/66/69mm | |
10 Holes | 72/75/78/81mm | |

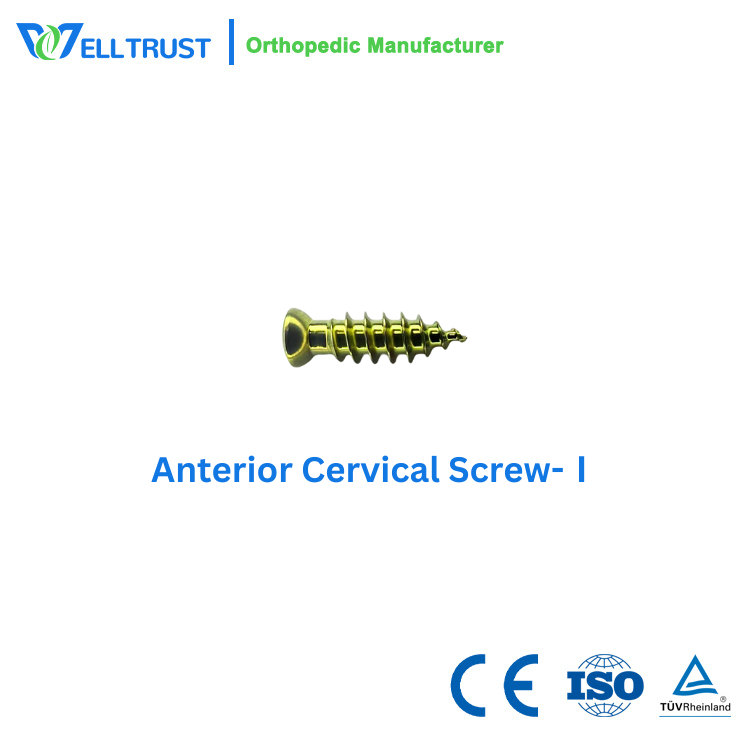

Anterior Cervical Screw-Ⅰ | 4.0 | 13/14/15/16/17/18mm |
4.5 | 13/14/15/16/17/18mm | |

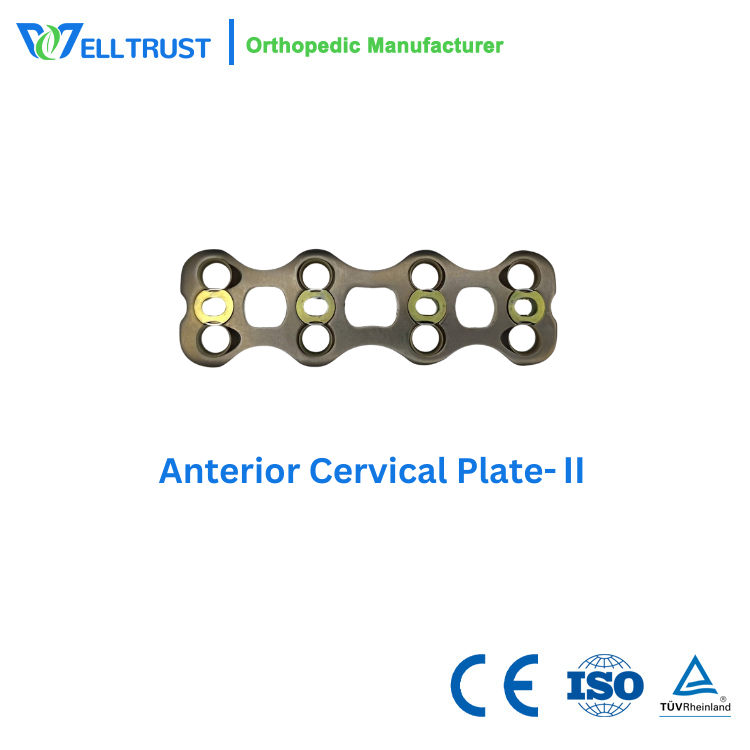

Anterior Cervical Plate-Ⅱ | 4 Holes | 22.5/25/27.5/30/32.5/35mm |
6 Holes | 37.5/40/43/46mm | |
8 Holes | 51/56/61/66/71/76/81mm | |

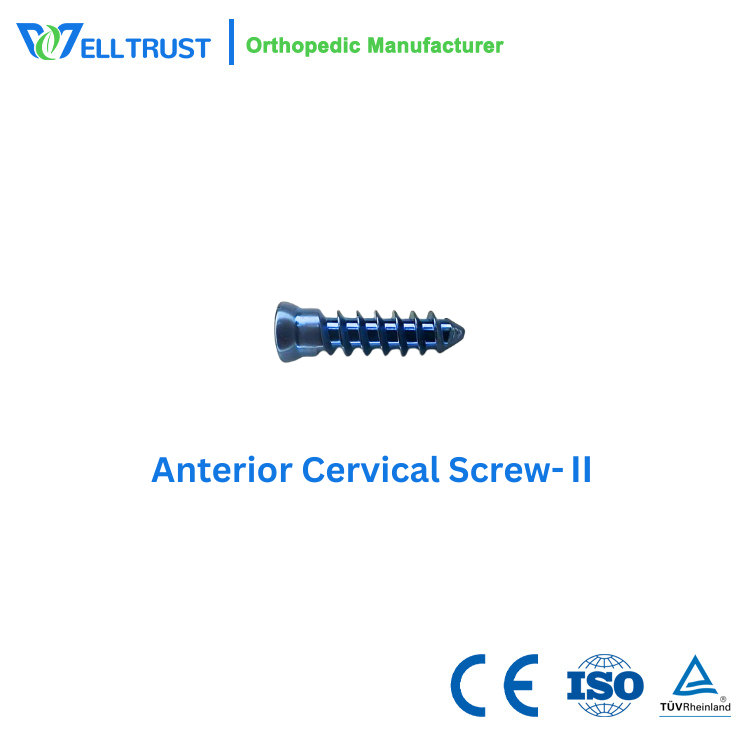

Anterior Cervical Screw-Ⅱ | 4.0 | 11/13/15/17/19mm |
4.5 | 11/13/15/17/19mm |

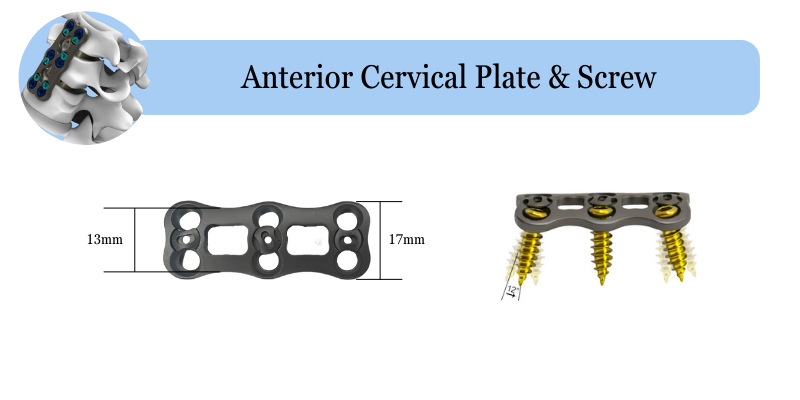

The spine plate has a certain curvature, the use of more flexible and more close to the cervical spine. The thickness of the acdf plate is 2mm, so it will not produce excessive protrusion when using.
About Well Trust
Our factory was established in 2005, with a professional manufacturing team and lunging import and export experience. The orthopedic implant manufacturing facility is a state-of-the-art production center dedicated to the development and production of high-quality orthopedic implants.
We specialize in the manufacturing of a wide range of orthopedic implants, including screws, plates, and nails, catering to various surgical specialties such as trauma, spine, joint reconstruction, and sports medicine. Our implants are crafted from biocompatible materials such as titanium, stainless steel, and advanced polymers, offering optimal strength and compatibility with the human body.
With a customer-centric approach, we strive to build strong partnerships with healthcare providers, surgeons, and distributors worldwide. With a focus on quality, innovation, and sustainability, we are committed to being a trusted partner in the orthopedic industry.
