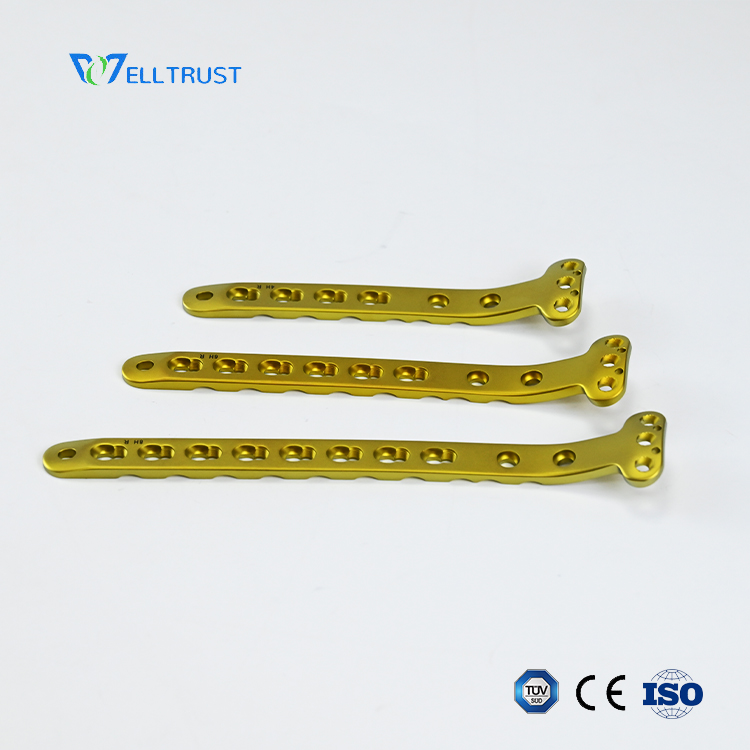

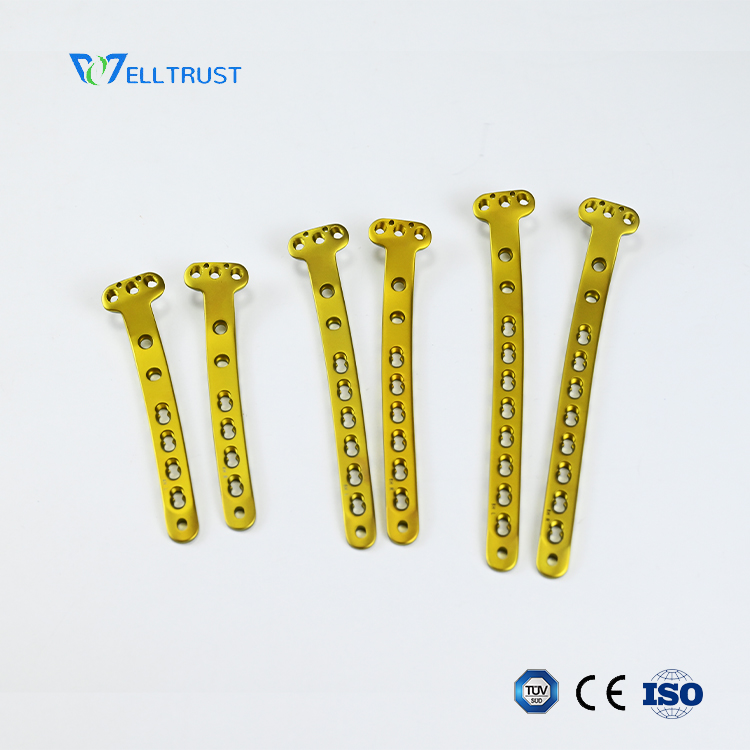

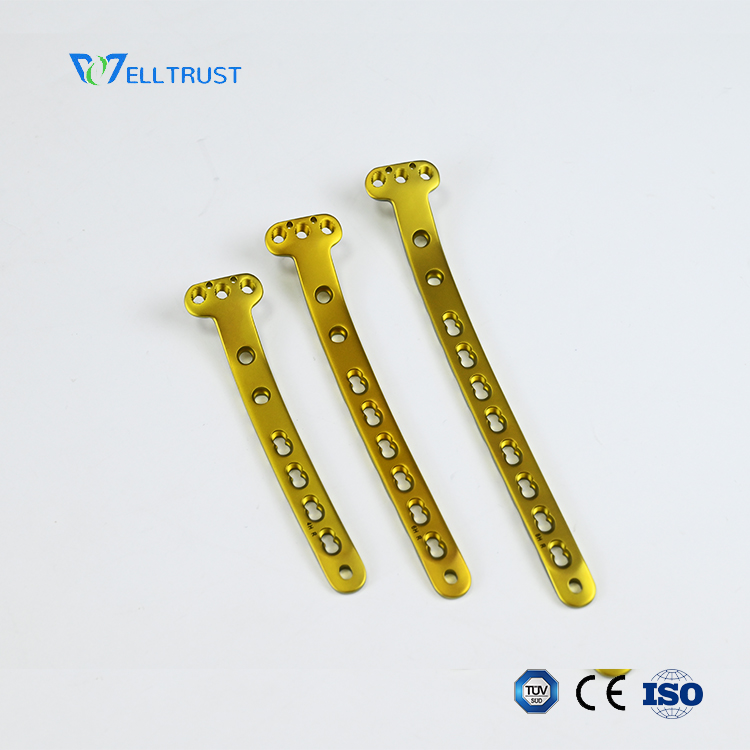

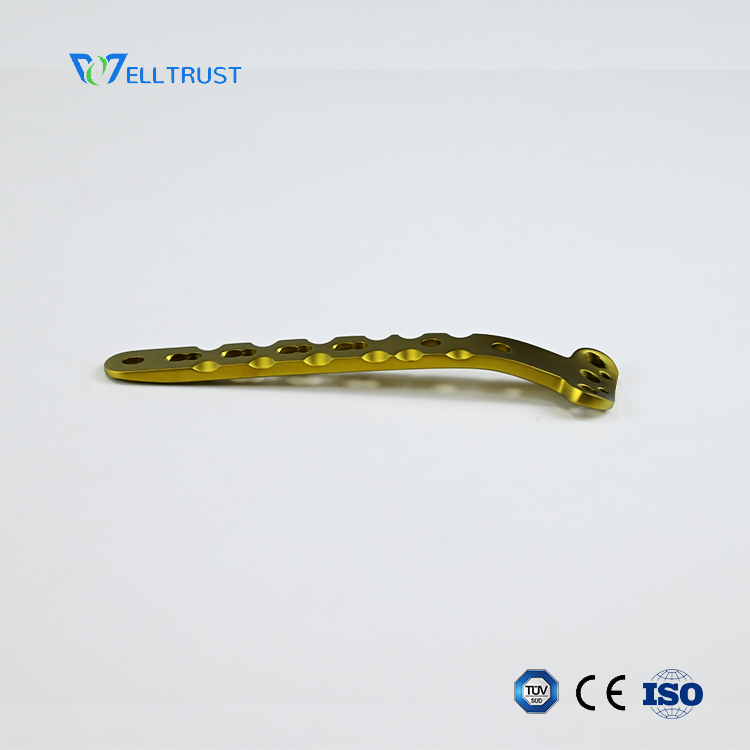

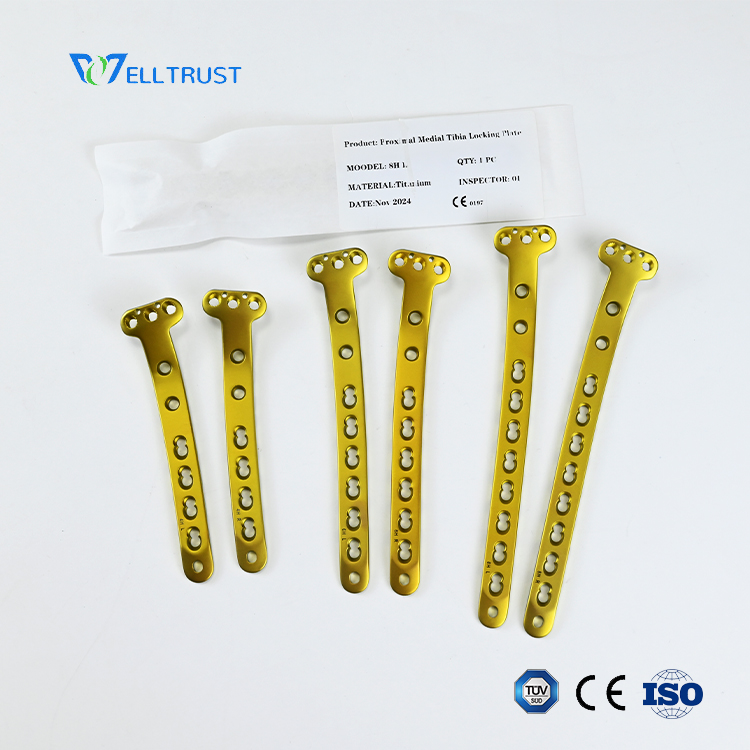

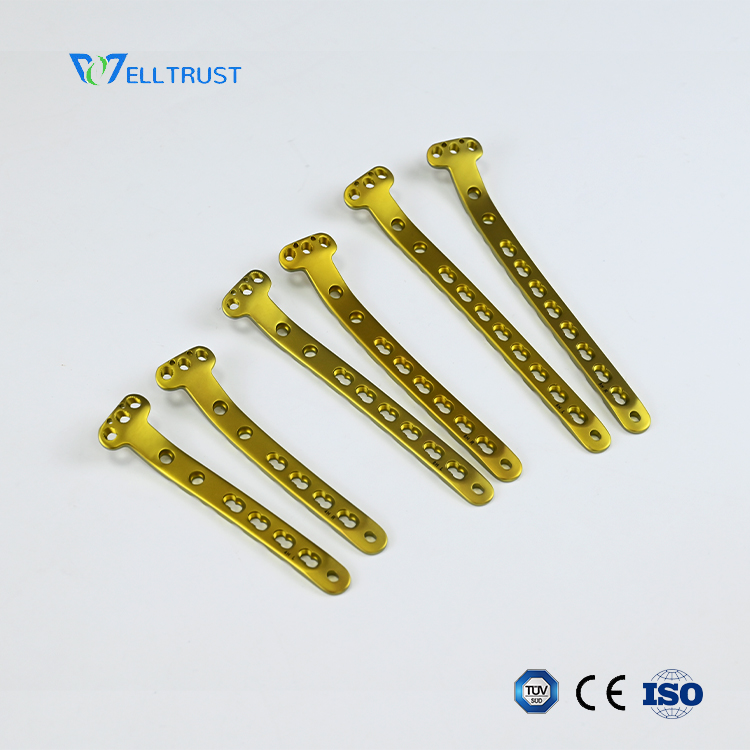

Proximal Medial Tibial Locking Plate

The Proximal Medial Tibial Locking Plate is an orthopedic fixation plate designed for applications involving the proximal medial tibia. It features a contoured proximal section and an elongated plate body to provide different configuration options for orthopedic fixation procedures.

WELLTRUST offers this proximal medial tibial locking plate in both left and right configurations. The series includes 4-, 6-, 8-, 10- and 12-hole options, with corresponding lengths from 83 mm to 187 mm. The plate thickness is 4.2 mm and the width is 13 mm across the listed configurations.

The range of sizes allows medical device distributors, orthopedic hospitals and surgical teams to select a suitable configuration according to the fixation requirements and available anatomical space. The different hole counts also provide options for shorter or longer fixation constructs.

The plate is specified for use with 3.5mm locking screws and 3.5mm cortical screws. These screw dimensions describe the compatible fixation screws and should not be interpreted as the plate thickness or plate size.

WELLTRUST provides complete REF information for each configuration, making it convenient for product selection, quotation and inventory management. Customers can select the required side, hole count and plate length according to their application requirements.

FAQ

Q1: What configurations are available?
The plate is available in left and right configurations with 4, 6, 8, 10 or 12 holes.

Q2: What are the plate dimensions?
The listed configurations have a thickness of 4.2 mm and a width of 13 mm, with lengths from 83 mm to 187 mm.

Q3: Which screws are compatible with the plate?
The product is specified for use with 3.5mm locking screws and 3.5mm cortical screws.

Q4: How can I select the correct configuration?
Selection can be based on the required side, number of holes and plate length. WELLTRUST can provide the corresponding REF information for quotation and ordering.
