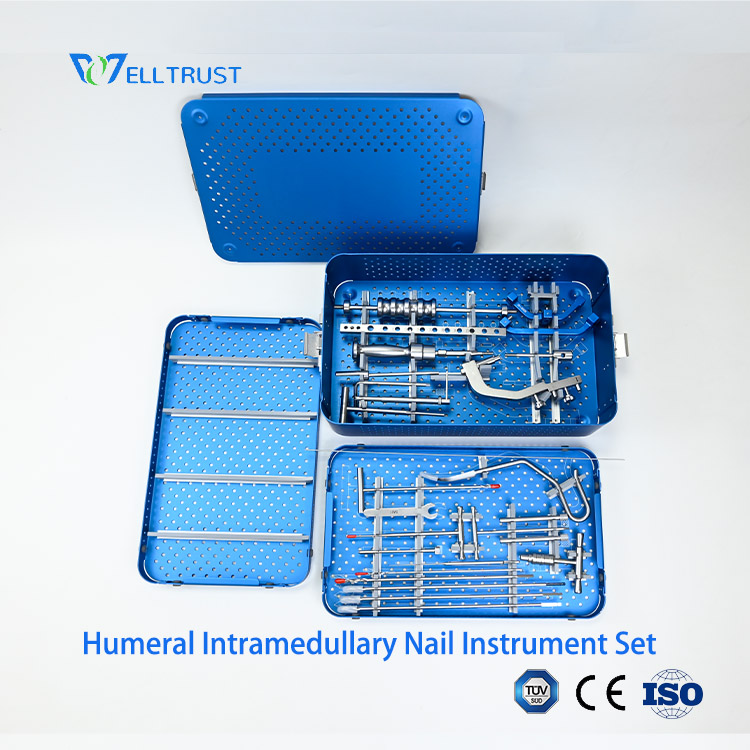

Humeral Intramedullary Nail Instrument Set

Set Model: 1200-01
Total Listed Components: 29
Depth Gauge: 0–60 mm
Drill Bits: 2.9 × 250 mm, 5.2 mm, 5.2 × 300 mm
Reamers: 7.5 × 340 mm, 8.0 × 340 mm, 8.5 × 340 mm
Storage: Aluminium Box

The Humeral Intramedullary Nail Instrument Set 1200-01 is an orthopedic surgical instrument set designed for procedures involving compatible humeral intramedullary nail systems. The set combines instruments for drilling, reaming, nail positioning, locking, measurement, and surgical access in one organized configuration.

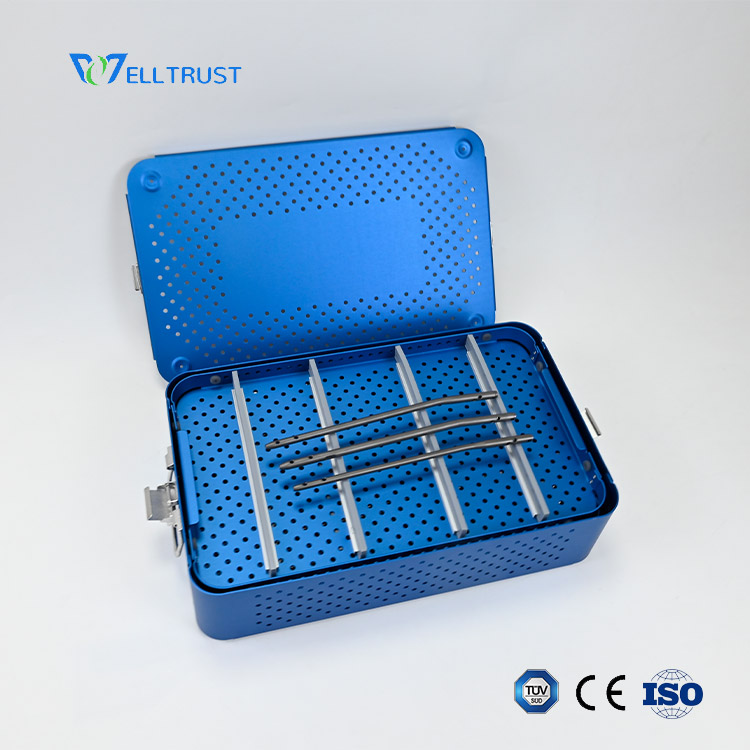

The set includes several drilling and reaming instruments for different stages of nail preparation. The configuration contains a 5.2 mm drill bit, 2.9 × 250 mm drill bit, and 5.2 × 300 mm drill bit, together with 7.5 × 340 mm, 8.0 × 340 mm, and 8.5 × 340 mm reamers. A 3.5 mm tap and AWL are also included for preparation and access.

For measurement and positioning, the set provides a 0–60 mm depth gauge, distal positioning frame, location rod, gauge cannula, and guide wire. The distal guider, proximal guider, nail connector, fixed connector, guide rod, and universal joint provide the components required for connecting and positioning the instrument assembly during the procedure.

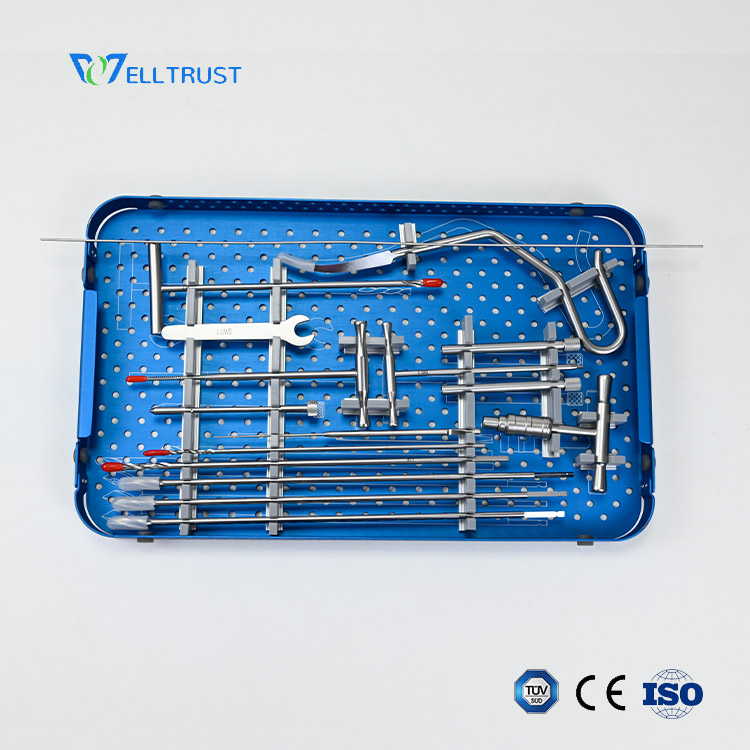

The set also includes a quick coupling T-handle, sighting device handle, sleeves, drill sleeve, SW2.5 screwdriver, hex wrench, open wrench, and hammer. These components support different stages of instrument operation and nail placement.

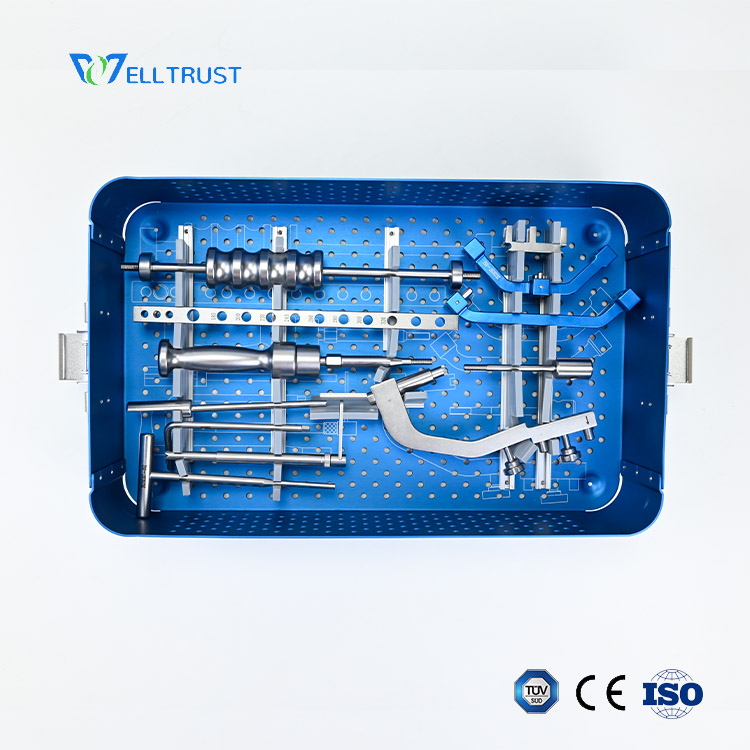

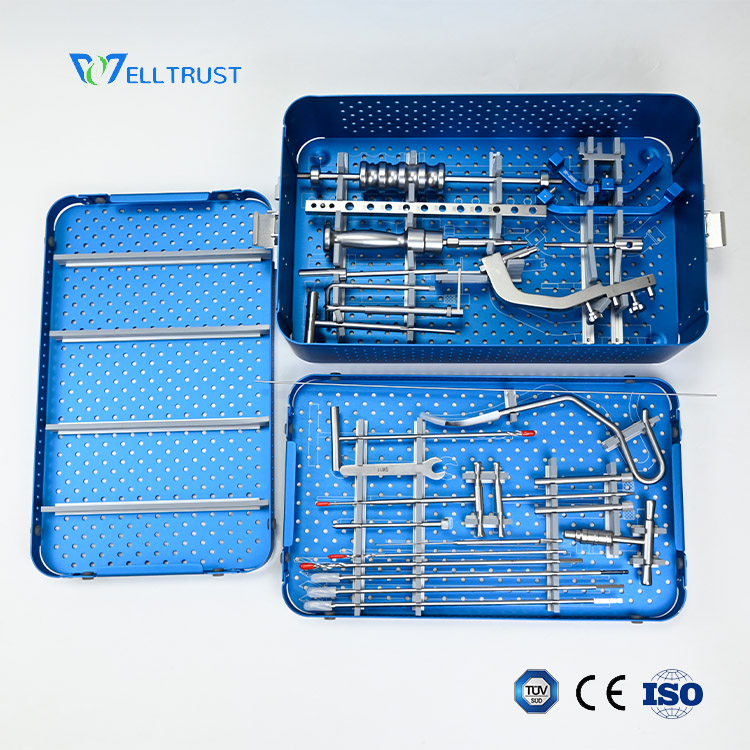

The Humeral Intramedullary Nail Instrument Set contains 29 listed components, with each component supplied in a quantity of one according to the provided configuration. The complete set is organized in an aluminium box for storage and instrument management.

WELLTRUST supplies orthopedic surgical instrument sets for trauma and fracture fixation applications. The instruments should be used with compatible humeral intramedullary nail systems and according to the applicable surgical technique.
