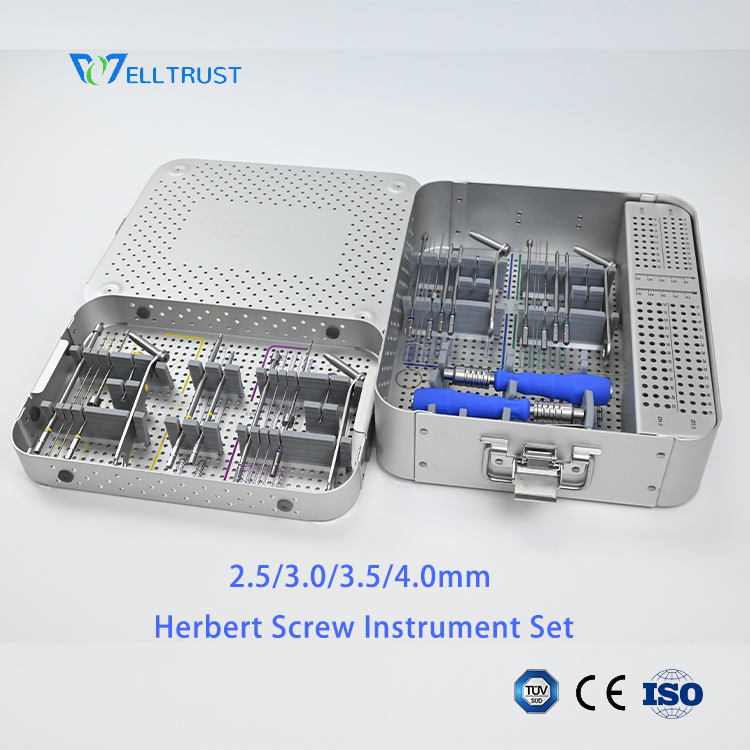

2.5/3.0/3.5/4.0mm Herbert Screw Instrument Set

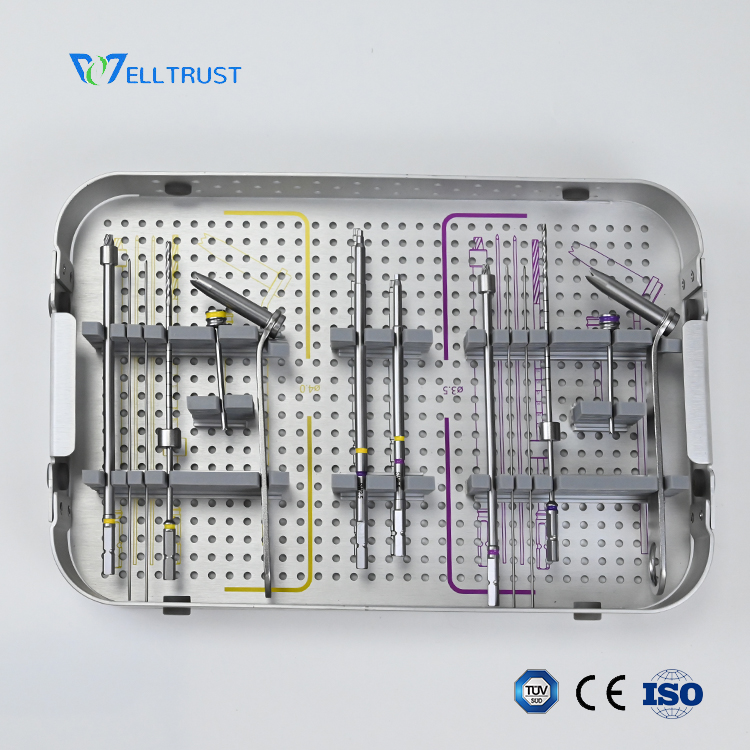

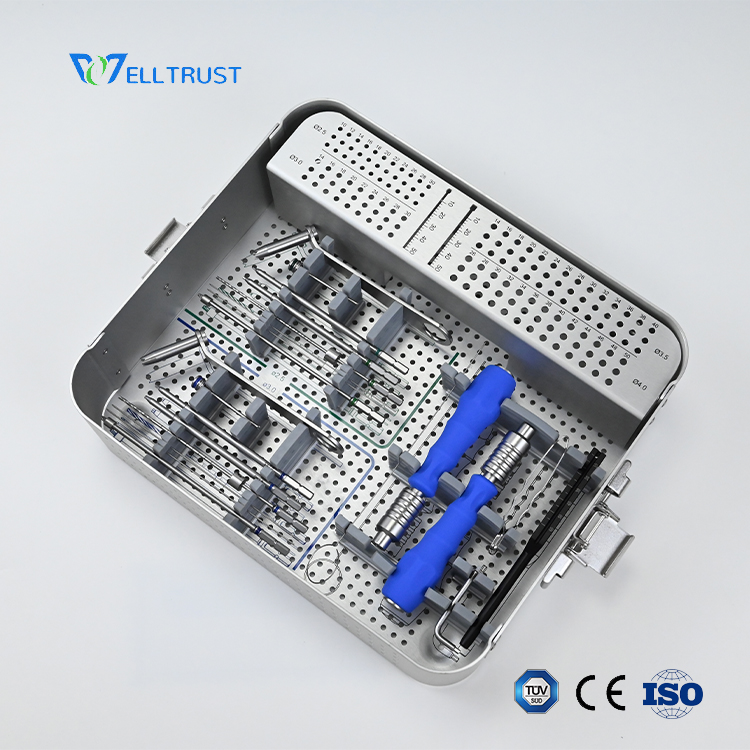

The Herbert Screw Instrument Set 4200-18 is a dedicated orthopedic instrument set designed to support procedures involving cannulated Herbert screws. The set combines drill sleeves, wire sleeves, cannulated drill bits, guide wires, countersinks and screwdrivers for different instrument configurations in one organized system.

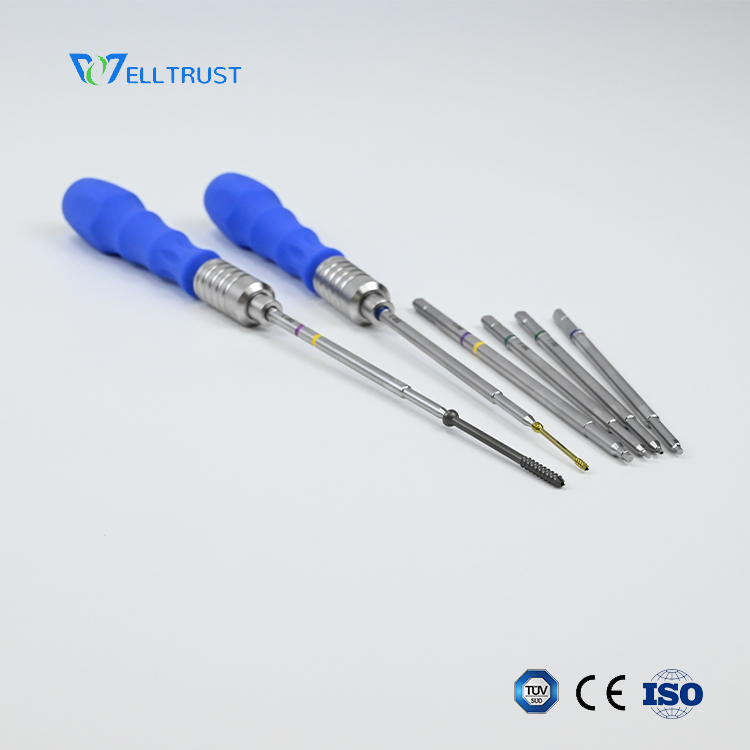

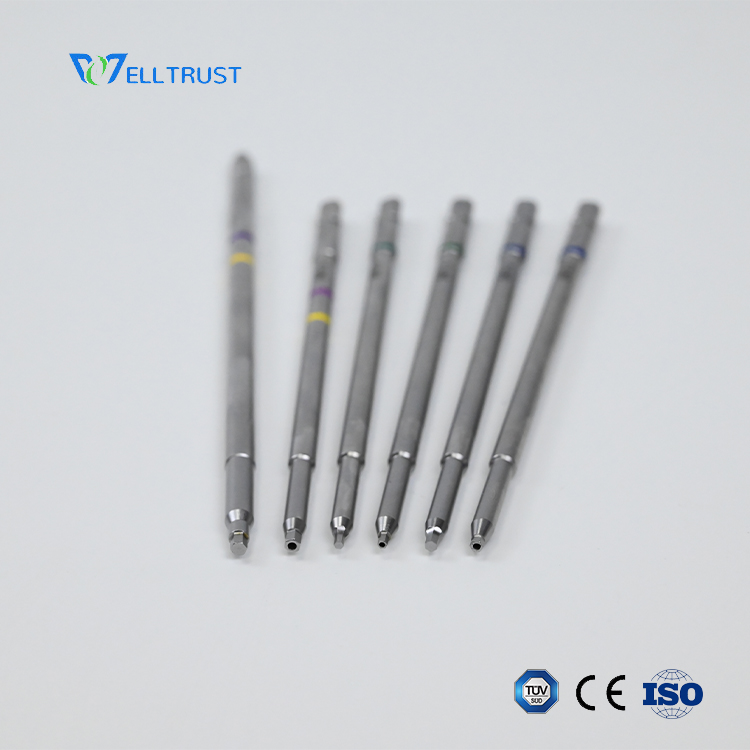

The Herbert Screw Instrument Set covers several drilling and guide-wire combinations. The first configuration includes a Φ2.5 mm drill sleeve, Φ2.5/Φ1.2 mm wire sleeve, a cannulated drill bit with limitator and Φ1.2 × 150 mm guide wires. It is complemented by a Φ4.3/Φ1.2 mm cannulated countersink and a SW2.5/Φ1.2 mm cannulated screwdriver. A standard SW2.5 screwdriver is also included.

A second configuration uses a Φ2.8 mm drill sleeve, Φ2.8/Φ1.2 mm wire sleeve, cannulated drill bit with limitator and Φ1.2 × 150 mm guide wires, together with a Φ5.0 mm cannulated countersink. Additional configurations include Φ2.0/Φ0.8 mm and Φ2.2/Φ1.0 mm wire and drilling systems, with corresponding cannulated countersinks and screwdrivers.

The set also includes Clean Stylet Φ1.0 × 150 mm, two straight-handle components listed separately, screw holding forceps, a SW2.5 hex key and a depth gauge. These components provide additional support for instrument handling, guide-wire management and depth measurement.

WELLTRUST provides the Herbert Screw Instrument Set 4200-18 as an integrated instrumentation solution for orthopedic medical device distributors, hospitals and surgical instrument partners. Individual REF numbers make the components easier to identify and manage within the complete set.

The specific instrument configuration should be reviewed together with the intended Herbert screw system before ordering to confirm compatibility. WELLTRUST can provide detailed configuration information for customers evaluating Herbert screw instrumentation.
