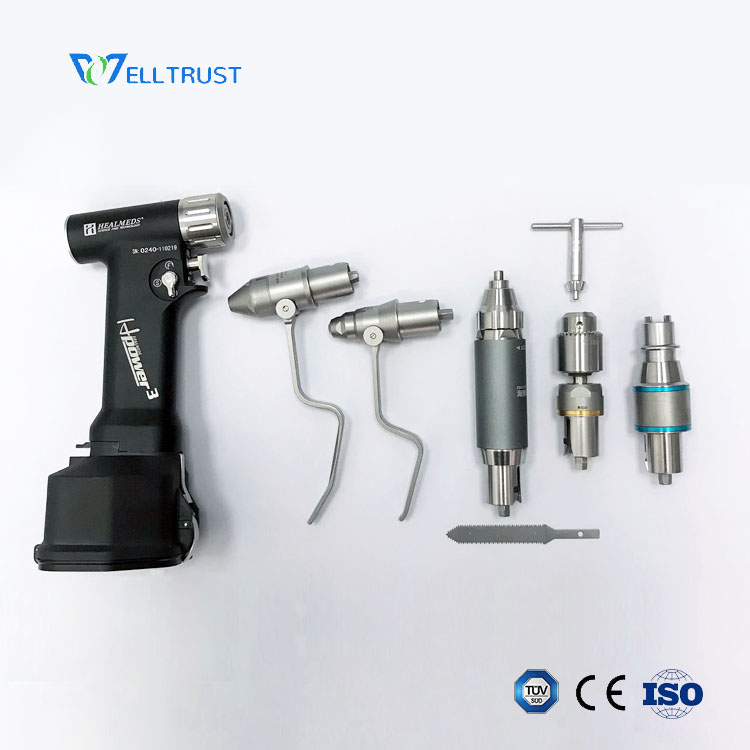

E100 Veterinary Multifunctional Orthopedic Drill and Saw

The E100 is a modular veterinary orthopedic power system designed for selected animal orthopedic, trauma, small-bone, joint and neurosurgical procedures. Its single handpiece platform can be configured with different drill, reamer, wire or pin driving and saw attachments, allowing veterinary teams to select the operating function required for a planned procedure.

The E100 provides two main performance ranges. With the key chuck attachment, the listed speed range is 0-1,200 rpm and the listed torque is 3.5 N·m. With the reaming attachment, the listed speed range is 0-400 rpm and the listed torque is 10 N·m. This combination provides a practical balance between controlled drilling and higher-torque reaming applications.

The system operates at 9.6 V and uses a 2,100 mAh battery. The listed radial circle run-out is ≤0.1 mm, the listed axial movement is ≤0.5 mm, the maximum drill bit diameter is 8 mm and the cannulation diameter is 6.5 mm. These specifications support precise attachment selection for bone drilling, reaming and guide-wire-related workflows.

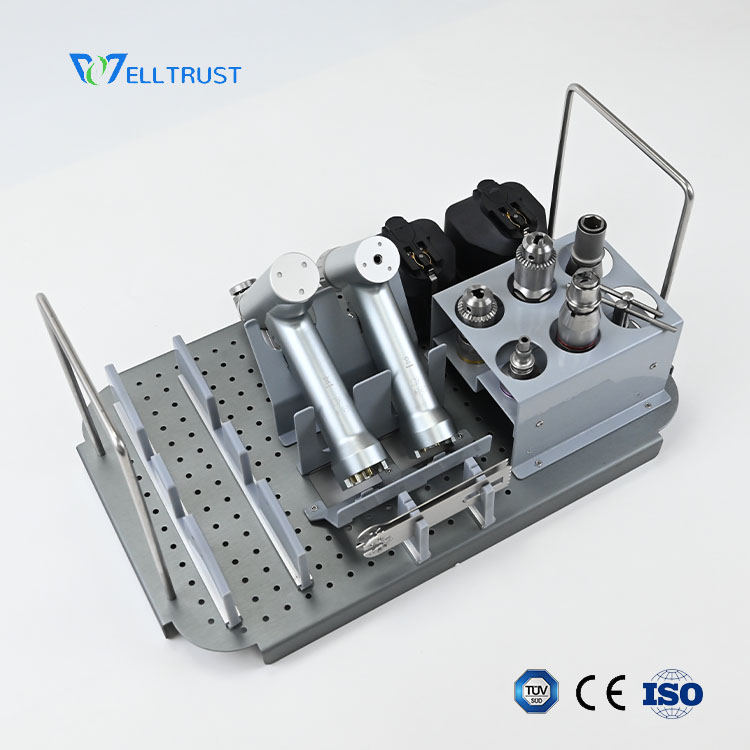

The standard configuration includes one E100 multifunction drill handpiece, two batteries, one sterilizing channel, one charger and one aluminum instrument box. The standard set provides the main powered platform and essential supporting components for equipment preparation and storage.

Additional attachments can be selected separately.

Well Orthopedic supplies veterinary orthopedic power tools, implants, external fixation systems, orthopedic instruments and related surgical equipment. Our team supports E100 system configuration, attachment selection, product comparison, quotation preparation and complete veterinary orthopedic solution planning for animal hospitals, distributors and professional procurement teams.

Use the E100 with the attachment, drill bit, wire, pin, reamer or saw blade appropriate for the selected procedure. The responsible veterinary professional must select the equipment and operating technique according to the animal, surgical site, bone characteristics and applicable instructions for use.

Technical Specifications

Standard Configuration

Optional Attachment Selection

Frequently Asked Questions

1. What is the E100 Veterinary Multifunctional Orthopedic Drill and Saw System?

E100 is a modular veterinary surgical power system that supports drilling, reaming, wire or pin driving and oscillating bone-cutting functions through selectable attachments.

2. What is included in the standard E100 configuration?

The standard configuration includes one E100 multifunction drill, two batteries, one sterilizing channel, one charger and one aluminum instrument box.

3. Are the attachments in the product configuration included as standard?

The wire/pin driving, drill chuck, quick attachment and reamer options are selectable attachment configurations. They can be added according to the intended veterinary procedure and procurement requirement.

4. What are the E100 key chuck and reaming performance ranges?

The key chuck attachment operates at 0-1,200 rpm with 3.5 N·m torque. The reaming attachment operates at 0-400 rpm with 10 N·m torque.

5. Which K-wire sizes are available?

The wire-driving options include a K-wire drill for 0.7-1.6 mm wires and a K-wire drill for 1.8-4.0 mm wires.

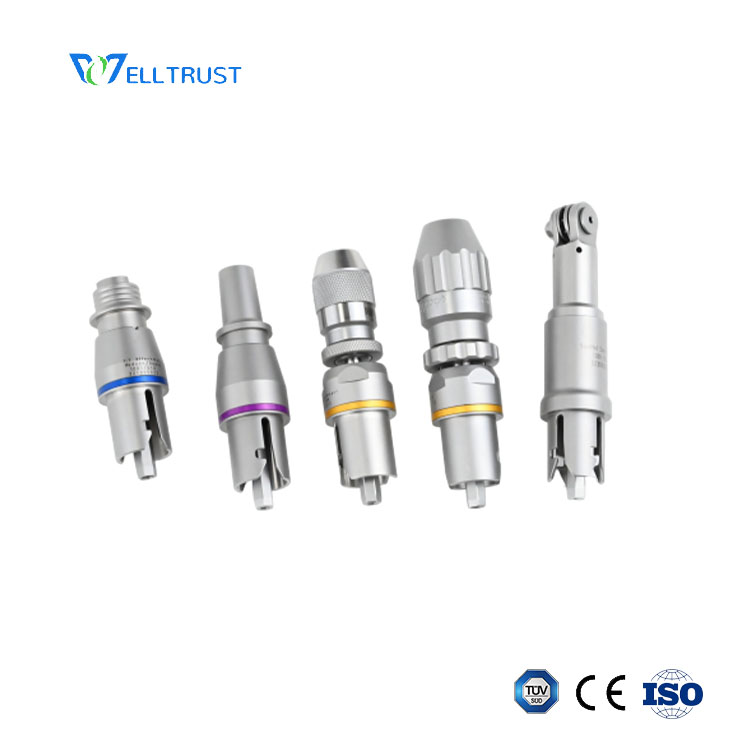

6. Which drill chuck options are available?

The 1:1 multifunction drill attachment group includes Jacobs chuck options of 0-6.5 mm and 1-4.0 mm, keyless chuck options of 4.0 mm and 8.0 mm, and the corresponding drill chuck keys.

7. What veterinary procedures can E100 support?

E100 can be configured for selected animal orthopedic, trauma, small-bone, joint, wire or pin fixation, bone-cutting and neurosurgical workflows. The responsible veterinary professional selects the appropriate attachment and technique for each case.

8. Can Well Orthopedic help configure an E100 system?

Yes. Well Orthopedic can support attachment selection, model comparison, quotation preparation, related implant and instrument coordination, and customized veterinary orthopedic power-tool requirements.
